For BMW 7 Series F01 F02(2009-2012)
Original CIC System
Only fit for LHD Version

---

Android  9.0 System
10.25 inch Capacitive touch screen
6 core , Rockchip PX6(RK3399), Cortex-A72 Processor CPU 1.8GHz
DDR3 4GB Ram, 32GB Rom
2 x USB , 1x SD; SD Max support 32GB ,USB Max support 64GB
built-in Quad core Mali400 graphics processor,Support 3D Map
High-Definition TFT Screen, solution: 1280*480
Support Multi Touch
Built-in high sensitivity GPS receiver
Bulit-in WIFI
Support Video format:  H264、MP4、AVI、RMVB、FLV、MKV
Support 1080P.
Support Audio format: MP3、WMA、FLAC、APE、AAC.
Support multiple languages.
Support BMW Canbus ,Support iDrive,Steering Wheel Control, car info.
GPS Sound is output from Front-left Speaker when running radio .
Support Phonelink Function: AirPlay(iPhone), Miracast(Android)
Support 3G Function (Optional)
Support DVR Function : USB 2.0 & CVBS
Be compatible with original screen 10.25 inch and 4pin LVDS.
Be compatible with/Without Optic fiber.
Be compatible with/Without Original Navigation
Support Original Radio.
Built-in Bluetooth and Support Original Bluetooth.
Support Idrive control in Android Menu.
Support Idrive control in original Menu.
Support Original camera
Support Parking trajectory/Radar.
Support AUX Switch automatically

---

How do I know what system it is on my BMW?



     Android 9.0  6-Core

              1.2GHz 6-core Coretex-A9 CPU 4GB RAM + 32GB Rom

              Built-in GPS, Support 2D 3D maps, support online / offline map

• Support online maps such as google map, iGO,Sygic and Waze map, For Free! With Google map,
  you can get the most accuate and up-to-date routes, live traffic data, and more. Finding your way
  around has never been faster and easier


• Supports offline GPS navigation and does not require an internet connection to work


• Support voice navigation.











  >> About the maps:

                     Order it now and get a free 8G SD card with latest maps data for 45 European countries and POI Database
                     we also have navi maps for USA, Canada, Israel, Australia, New Zealand, UAE and African Countries etc

                     We can pre-load the maps to the system and set the path for you.
                     You can also buy the original map in your side, like IGO, N-drive,Sygic, It support almost all map brand

                           Compatible with Carplay and Android Auto, CarPlay is a smarter, safer way to use your iPhone in the car.
                    CarPlay takes the things you want to do with your iPhone while driving and puts them right on our display.

                    Compatible with iPhone 5/5s/5c/Se ; iPhone6/6s/6plus/6s plus ; iphone 7/7plus

    Note: It need to buy extra USB carplay dongle.

Stream content or mirror your Apple or Android phone entire screen to the larger display wirelessly.

Ability to stream Spotify and Pandora from your phone via Bluetooth to enjoy millions of songs you like,
and make hands-free calling while driving.

After install this model, the original CD/Radio Head unit is keep the car, just replace the LCD screen,
thus ALL original car functions is still working as before, such as idrive, steering wheel control , original camea etc

important! Read before order -:)

 Q3: What is the LVDS ?



Re: On the back of original display, there is one connector connected to the original car monitor,
we call it LVDS.

After replace the original display with our model, it normally need to insert the factory LVDS
to our model, so that the original function can work with our head units correctly.

In order to confirm the car compatibility, sometimes need to check the type of LVDS (4pin/6pin/10pin etc),
especially when the produced year of your car is just in between the two car generations.

Here is just some examples for your reference.

Q4:Why there is no audio from new Android system?
Re:
A. Please check the AUX-IN cord. Make sure it is plugged in the AUX-IN port on your car.

B. And also you need to activate AUX-IN function.

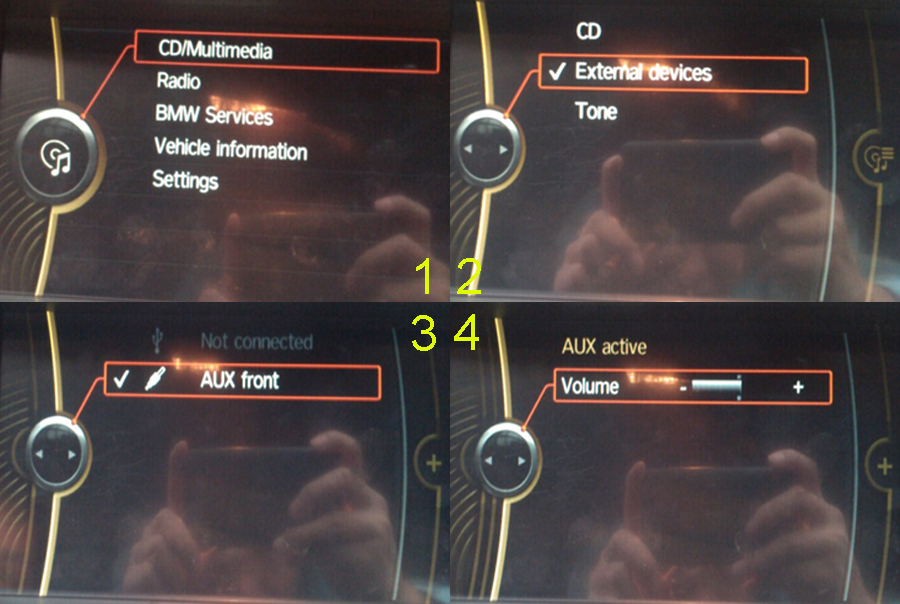

CD/Entertainment/External devices/External audio input (AUX front)/activate.

Q5:Why does the Sirius/XM radio, original car computer info and factory camera does not display?
Why does the AUX-IN volume stucks on zero and not adjustable?

RE: Please check the fiber optics plug, you need to move it from the original connector to new connector we provided.

.

.
